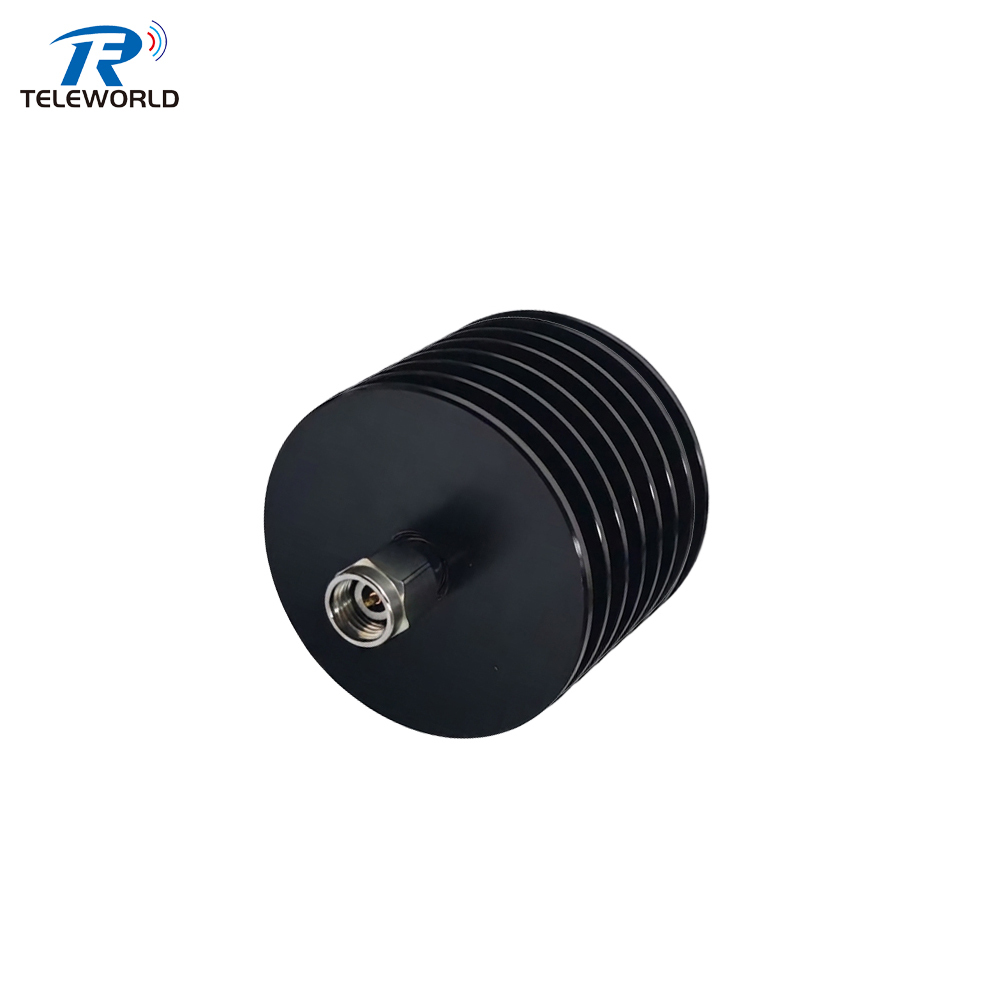

30W 2.92mm Fixed Attenuator DC-40GHz 20dB 30dB 40dB 50ohm

Achieve exact signal control and protect highly sensitive microwave equipment with our Precision 20W 2.92mm RF Coaxial Attenuators. Engineered for top-tier accuracy in millimeter-wave testing, these 50-ohm fixed attenuators operate flawlessly from DC up to 40 GHz, making them an essential component for Ka-band satellite communications, 5G development, radar systems, and precision laboratory environments.

Constructed with high-reliability 2.92mm connectors, these attenuators feature a rugged air-dielectric interface that ensures superior electrical performance and tight tolerances at high frequencies. Furthermore, the 2.92mm interface is fully intermateable with standard SMA and 3.5mm connectors, offering maximum versatility for your existing test setups. Capable of safely dissipating up to 30 Watts of continuous wave (CW) power, they deliver exceptionally flat attenuation across the entire 40 GHz band alongside ultra-low VSWR ≤ 1.35:1.

Key Features:
Broadband mmWave Performance: Delivers stable, accurate signal reduction from DC all the way to 40 GHz.
Available Attenuation Values: Choose from a wide range of precise, standard values including1 through 10 dB, 20 dB, 30 dB.
Optimal Power Handling: Safely absorbs up to 30Watts of continuous forward power at 25°C.
Precision 2.92mm Interface: Features high-durability,Male to Female.
Rugged Construction: Machined from premiumpassivated stainless steel to withstand rigorous testing environments and repeated mating cycles.

Technical Specifications：
